Quest complete

Sport frames

Sunglasses designed in code, printed in transparent PETG, and revised until they actually fit. Twenty-two revisions in five days.

Difficulty
Master
Length
Very long
Quest points
2
Skills
Crafting
Printer
Creality K1C
Material
Transparent PETG
Item inspection

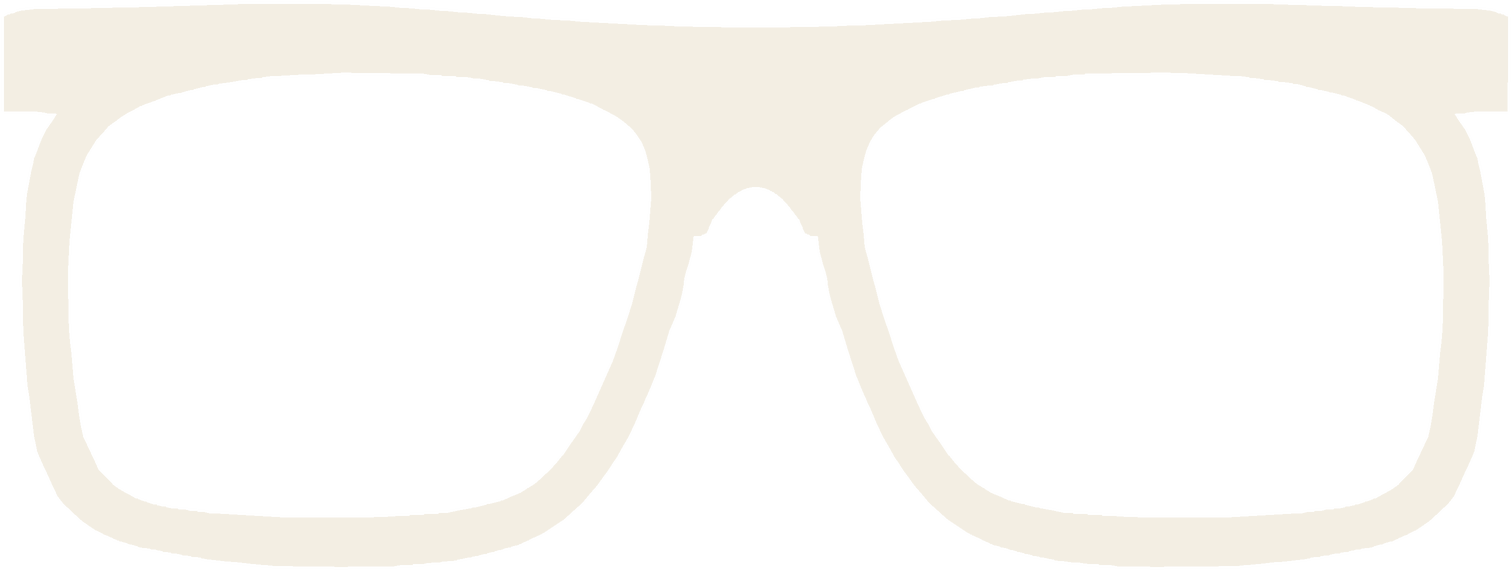

Front view silhouette of the Sport frames, revision 19
141.4 mm wide52.9 mm tall

Rendered straight from the STL files the printer uses. Real outlines, real millimeters.

Mini-game

Watch it evolve

Drag through eight revisions rendered from the real design files. Turn on the ghost to see how far each one sits from the final frame.

Front view of revision 19
Rev 19 · Sep 3141.4 × 52.9 mm

Final ergonomic. A higher nose and 0.85 mm of comfort relief inside each temple.

Quest journal
  • Day one: I generated the first frame from a Python script, then squared the brow, rounded its ends, and flattened the inside.
  • Day two: I measured real lenses and rebuilt the frame around them, then chased an Italian crystal look and gave the lenses more room.
  • Day three: hinges. M1 retention held them in, and the temples became properly left- and right-handed.
  • Day four: comfort. Positive temple stops, a higher nose, and softer temples.
  • Day five: I split the print into two steps, temples first and front second, with cooling breaks in between.
  • Rev 22 fits. Probably.
  • Quest complete!
Revision log
  1. v01Aug 31Unbranded rounded square
  2. v04Aug 31Squared brow, filled pillars
  3. v08Aug 31Rounded brow ends
  4. v09Aug 31Flat interior
  5. v10Sep 1Measured lenses and retention groove
  6. v11Sep 1Italian crystal
  7. v12Sep 1Lens clearance
  8. v13Sep 1Spherical front, separate parts
  9. v15Sep 2Final front, M1 hinge retention
  10. v16Sep 2Handed temples
  11. v17Sep 3Transparent PETG, positive stops
  12. v18Sep 3Higher nose
  13. v19Sep 3Final ergonomic temples
  14. v20Sep 3Continuous-root ergonomic temples
  15. v21Sep 4Two-step print with cooling recovery
  16. v22Sep 4Final print package: temples first, then front

Quest complete!

You have completed Sport frames

  • 2 Quest points
  • 3,800 Crafting XP
  • Unlocked: CAD from code, where every revision is a re-run instead of a redraw
The finished Sport frames, front view
Reward: a pair of sunglasses that fit
Lore

Known limits

  1. The higher nose and temple comfort changes from revs 18 and 19 are not physically verified yet. The lens and hinge system was.
  2. Every revision comes out of a Python build script, so changes are parameter edits, not redraws.
  3. Each release was checked for watertight meshes and zero part collisions before it went to the printer.
  4. Lenses press in with even pressure. If one binds, the fix is in the CAD, not in more force.
